| ブランド名: | TGFQ |
| モデル番号: | E374D 374D |
| MOQ: | 1 |
| 価格: | 500.00-4000.00USD |
| 梱包の詳細: | NNERのパッキング:プラスチック フィルム、各項目のための明確なラベルによる覆い。外のパッキング:カートンまたは合板の箱のパッキング サイズ:パッキング タイプによって決まりなさい |
| 支払い条件: | L/C、T/T、D/P、D/A |

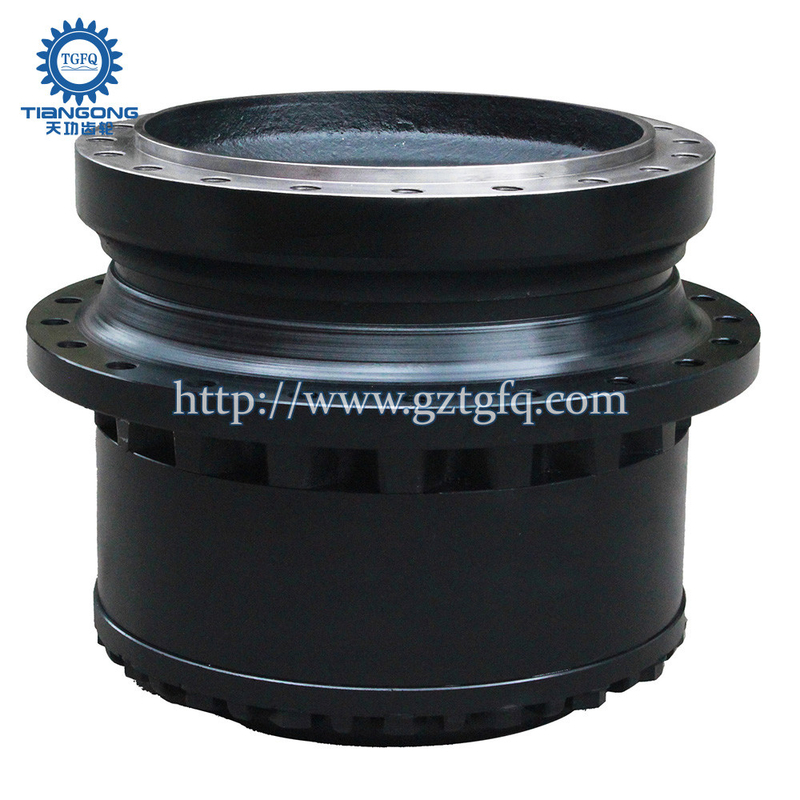

| 製品名 | 374D 掘削機 ファイナルドライブ |
| 原産地 | 中国 (本土) |
| 対応モデル | E374D / 374D |
| 色 | 黒 |
| 最小注文数量 | 1 個 |
| 部品番号 | 199-4726 |
| 納期 | 支払い受領後1〜3日以内 |
| 輸送方法 | 海上、航空または速達 |
| 位置 | 部品番号 | 数量 | 部品名 |
|---|---|---|---|
| 1 | 199-4727 | [1] | HOUSING-MOTOR |
| 2 | 214-7880 | [1] | SEAL GP-DUO-CONE |
| 214-7879 | [2] | RING-TORIC | |
| 3 | 163-1657 | [2] | CUP-SPECIAL TAPERED |
| 4 | 163-1656 | [2] | CONE-SPECIAL TAPERED |
| 5 | 8C-3411 M | [10] | BOLT (M30X3.5X90-MM) |
| 6 | 136-2926 | [4] | GEAR-PLANETARY (22-TEETH) |
| 7 | 136-2923 | [1] | GEAR-SUN (20-TEETH) |
| 8 | 7Y-1469 | [1] | COUPLING |
| 9 | 136-2944 | [2] | SPACER (61X95.1X10-MM THK) |
| 10 | 136-2948 | [6] | PIN-DOWEL |
| 11 | 199-4728 | [1] | HOUSING (SPROCKET) |
| 12 | 136-2959 BJ | [1] | SHIM (0.3-MM THK) |
| 136-2962 BJ | [1] | SHIM (0.6-MM THK) | |
| 136-2963 BJ | [1] | SHIM (0.7-MM THK) | |
| 136-2964 BJ | [1] | SHIM (0.8-MM THK) | |
| 136-2965 BJ | [1] | SHIM (1-MM THK) | |
| 136-2966 BJ | [1] | SHIM (1.6-MM THK) | |
| 17 | 136-2949 | [1] | GEAR-COUPLING (83-TEETH) |
| 18 | 136-2967 | [1] | SEAL-O-RING |
| 19 | 136-2947 | [1] | CARRIER-PLANETARY |
| 20 | 136-2945 | [1] | SPACER (203X233X8.5-MM THK) |
| 21 | 7Y-0667 | [1] | RING-RETAINING |
| 22 | 136-2930 | [1] | CARRIER-PLANETARY |
| 23 | 136-2922 | [1] | GEAR-SUN (19-TEETH) |
| 24 | 136-2927 | [1] | GEAR-RING (86-TEETH) |
| 25 | 7M-8485 | [2] | SEAL-O-RING |
| 26 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) |
| 27 | 136-2934 | [1] | CARRIER AS |
| 27A. | 136-2931 | [3] | SHAFT-PLANETARY |
| 28 | 136-2943 | [1] | RING-RETAINING |
| 29 | 136-2921 | [1] | GEAR-SUN (22-TEETH) |
| 30 | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) |
| 31 | 7Y-0808 B | [1] | SHIM (1.6-MM THK) |
| 32 | 136-2946 | [3] | BEARING-CAGED |
| 33 | 8T-4240 | [3] | RING-RETAINING |
| 34 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) |
| 35 | 136-2924 | [3] | GEAR-PLANETARY (31-TEETH) |
| 36 | 8T-3957 M | [12] | BOLT-SOCKET HEAD (M12X1.75X30-MM) |
| 37 | 136-2920 | [1] | COVER |
| 38 | 136-2932 | [3] | SHAFT-PLANETARY |
| 39 | 7Y-5231 M | [18] | BOLT (M30X3.5X260-MM) |
| 40 | 9X-8258 | [18] | WASHER (33X56X6-MM THK) |
| 41 | 136-2925 | [3] | GEAR-PLANETARY (23-TEETH) |
| 42 | 1U-8846 B | SEALANT-GASKET | |
| 43 | 136-2928 | [1] | GEAR-RING (68-TEETH) |
| 44 | 7Y-0912 | [11] | BEARING AS-ROLLER |
| 45 | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) |
| 46 | 099-5194 | [7] | PIN-SPRING |
| 47 | 136-2933 | [4] | SHAFT-PLANETARY |
| 48 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) |
