TGFQ Product JS290 JS330 JS305 JS360 Travel drive JSA0073/05/204600

ブランド名:	TGFQ
モデル番号:	MAG-180VP
MOQ:	1
価格:	1650.00USD
梱包の詳細:	NNERのパッキング:プラスチックフィルム、各項目のための明確なラベルによる覆い。外のパッキング:カートンまたは合板の箱のパッキングサイズ:パッキングタイプによって決まりなさい
支払い条件:	L/C、T/T、D/P、D/A

詳細情報

製品説明

詳細情報

起源の場所:

中国

対応機種:

JS330 JS305 JS360

スイングブレーキタイプ:

マルチディスクプレートアセンブリ

モーターの種類:

掘削機の移動ドライブ

逆止弁:

一方向バルブの設計

供給の能力:

10かPCS/月

ハイライト:

Excavator travel motor JS290

Travel motor JS330 excavator

Excavator travel drive JSA0073

製品説明

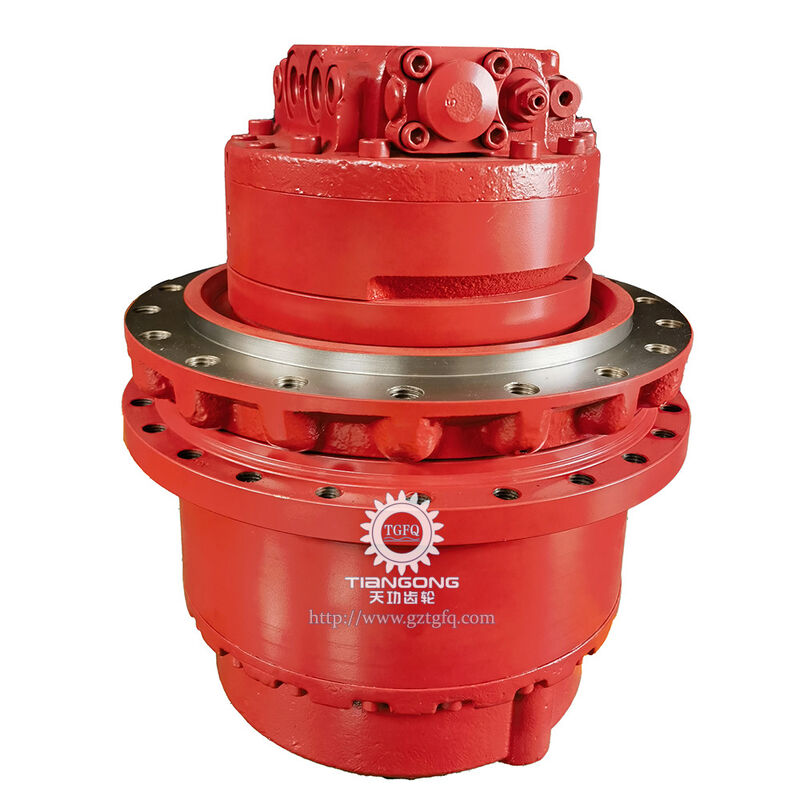

TGFQ Product JS290 JS330 JS305 JS360 Travel Drive JSA0073/05/204600

As a premium replacement spare part for JCB excavators, the JS330 JS305 JS360 travel drive is exclusively engineered to perfectly match JS330 JS305 JS360 models. Distinguished from standard hydraulic motors, this product integrates advanced hydraulic transmission technology and reinforced structural design, dedicated to delivering superior performance, longer service life and enhanced operational safety for heavy-duty construction scenarios, making it an ideal alternative to original parts with higher cost-effectiveness.

Safety Features

Reverse-Prevention Valve System

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

One-way valve design ensures hydraulic oil flows in only one direction
Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications

Compatible Models	JS330 JS305 JS360
Category	Excavator TRAVEL DRIVE
Brand	TGFQ
Part Numbers	JSA0073/05/204600
Packing	Wooden Case
Delivery Time	1-3 days after payment confirmation
Shipping Methods	By Sea, Air, or Express

Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Product Images

Travel Motor Parts Breakdown

Parts List - Assembly 1

#	Part No.	Description	Qty
15	05/903851	Retainer	1
9	05/903845	Gear, reduction set, 2nd planet	1
6	05/903842	Cover, set	1
12	05/903848	Bush	4
14	05/903850	Seal, assembly	1
21	05/903857	Motor, hydraulic	1
22	05/903856	Screw	4
8	05/903844	Gear, reduction set, 1st planet	1
1	05/903839	Bolt	20
18	05/903814	O Ring; Replaced by 2400/0258, See SAN 11673	1
B	05/202500	Gearbox, assembly
5	05/903841	Pad	1
4	05/903840	O Ring	1
16	05/903852	Hub	1
3	05/903822	Plug, breather; Replaced by 05/903802, REF SAN09977	2
17	05/903853	Spacer	1
A	JSA0073	Motor, track gearbox	2
13	05/903849	Hub	1
10	05/903846	Bolt	4
7	05/903843	Gear, sun	1
19	05/903854	Coupling	1
20	05/903855	Circlip	1
2	05/903803	Washer	2
18	2400/0258	O Ring	1
3	05/903802	Plug, breather; Replaces 05/903822	2
11	05/903847	Gear, planet

Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
