| ブランド名: | TGFQ |
| モデル番号: | E349F 349D2 349E 352F |
| MOQ: | 1台のパソコン |
| 価格: | 150.00USD |
| 支払い条件: | T/T |
| Product Name | Excavator Travel Shaft Drive |
| Part Numbers | 333-2927 |
| Compatible Models | E349F 349D2 349E DRIVE GP |
| Drive Type | Hydraulic |
| Material | High-strength Steel |
| Weight Classification | Heavy-duty |
| Availability | In Stock |
| Item | Part Number | Part Name | Quantity |
|---|---|---|---|
| 1 | 7Y-0808 | Shim (1.6-MM Thk) | 1 |
| 2 | 7Y-1469 | Coupling | 1 |
| 3 | 7Y-1472 | Shim (0.15-MM Thk) | 1 |
| 4 | 7Y-1473 | Shim (0.3-MM Thk) | 1 |
| 5 | 7Y-1474 | Shim (0.4-MM Thk) | 1 |
| 6 | 7Y-1475 | Shim (0.5-MM Thk) | 1 |
| 7 | 7Y-1476 | Shim (0.6-MM Thk) | 1 |
| 8 | 7Y-1477 | Shim (0.7-MM Thk) | 1 |
| 9 | 7Y-1478 | Shim (0.8-MM Thk) | 1 |
| 10 | 7Y-1479 | Shim (1-MM Thk) | 1 |
| 11 | 7Y-1480 | Shim (1.6-MM Thk) | 1 |
| 12 | 7Y-1493 | Spacer (8.7X50X14-MM Thk) | 1 |
| 13 | 114-1541 | Pin-Dowel | 6 |
| 14 | 136-2898 | Washer (58.3X89X1-MM Thk) | 14 |
| 15 | 191-2690 | Washer (42.3X70X1-MM Thk) | 6 |
| 16 | 199-4719 | Gear-Coupling | 1 |
| 17 | 227-6048 | Washer (26X40X4-MM Thk) | 12 |
| 18 | 255-2272 | Seal GP-Duo-Cone | 1 |
| 205-9114 | Ring-Toric | 2 | |
| 19 | 296-6185 | Shaft | 4 |
| 20 | 296-6195 | Shaft | 3 |

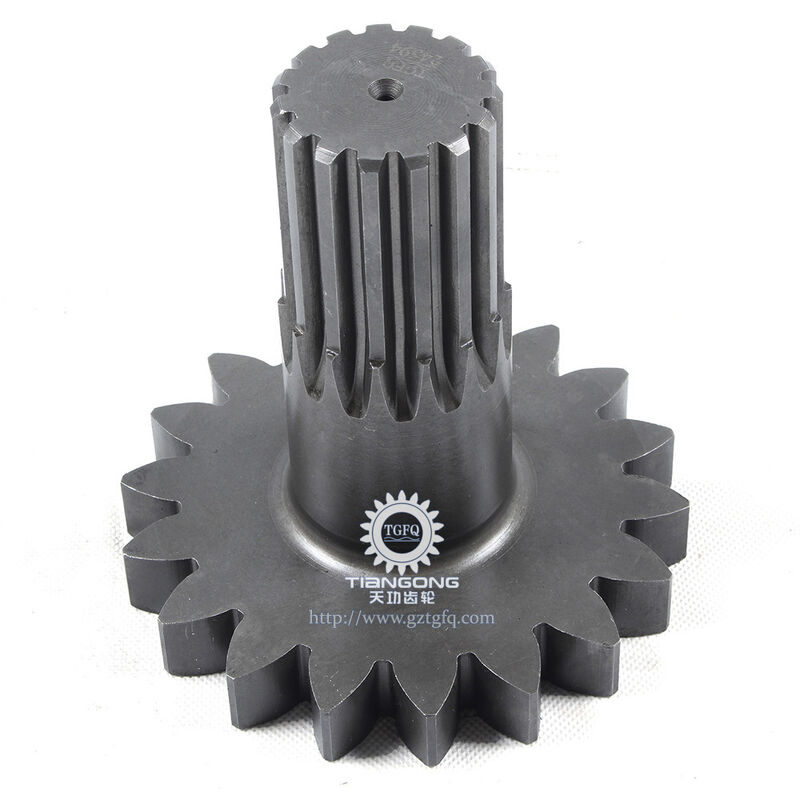

| 21 | 333-2927 | Gear-Sun (18-TEETH) | 1 |
| 22 | 333-2928 | Gear-Sun (21-TEETH) | 1 |
| 23 | 333-2929 | Gear-Sun (21-TEETH) | 1 |
| 24 | 333-2930 | Gear-Planetary (21-TEETH) | 3 |
| 25 | 333-2931 | Gear-Planetary (20-TEETH) | 3 |
| 26 | 333-2932 | Gear-Planetary (20-TEETH) | 4 |
| 27 | 333-2936 | Carrier AS | 1 |
| 28 | 333-2938 | Carrier-Planetary | 1 |
| 29 | 333-2939 | Carrier-Planetary | 1 |
| 30 | 333-2942 | Spacer (183X209.6X8.5-MM Thk) | 1 |
| 31 | 333-2960 | Gear-Ring | 1 |
| 32 | 333-3035 | Plate | 1 |
| 33 | 346-5216 | Bearing-Needle | 11 |
| 34 | 346-5556 | Cone-Bearing | 2 |
| 35 | 353-0605 | Housing-Gear | 1 |
| 36 | 451-2176 | Washer-Hard (22X35X3.5-MM Thk) | 28 |
| 37 | 451-2182 | Washer-Hard (13.5X25.5X3-MM Thk) | 20 |
| 38 | 452-3520 | Housing-Motor | 1 |
| 39 | 480-7403 | Cover | 1 |
| 40 | 096-3216 | Setscrew-Socket (M12X1.75X12-MM) | 2 |
| 41 | 096-8058 | Ring-Retaining | 3 |
| 42 | 143-0811 | Bolt (M12X1.75X35-MM) | 20 |
| 43 | 238-6588 | Pin-Spring | 7 |
| 44 | 296-6248 | Bearing AS-Roller | 3 |
| 45 | 2R-0525 | Cup-Bearing | 2 |
| 46 | 3E-2338 | Plug-Pipe | 2 |
| 47 | 4S-5924 | Seal-O-Ring | 1 |
| 48 | 5P-8245 | Washer-Hard (13.5X25.5X3-MM Thk) | 20 |
| 49 | 6V-8133 | Bolt (M24X3X80-MM) | 12 |
| 50 | 6V-8200 | Bolt-Socket Head (M12X1.75X35-MM) | 20 |
| 51 | 7M-8485 | Seal-O-Ring | 2 |
| 52 | 7Y-0667 | Ring-Retaining | 2 |
| 53 | 7Y-1492 | Spacer (67X101.1X10-MM Thk) | 2 |
| 54 | 7Y-5217 | Bolt-Socket Head (M20X2.5X70-MM) | 28 |
| 55 | 8C-5240 | Seal-O-Ring | 1 |
| 56 | 1U-8846 | Sealant-Gasket |
